Rumble filter (CB22153E)

Details
Written by: Newton C. Braga



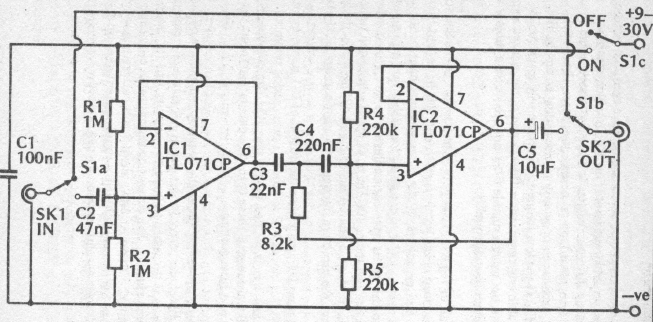

This circuit filters low frequency noise from the turntable motor. We found it in a 1989 documentation. The font doesn't have to be symmetrical, but it should have excellent filtering.
