Universal Preamplifier (CB23615E)

Details
Written by: Newton C. Braga

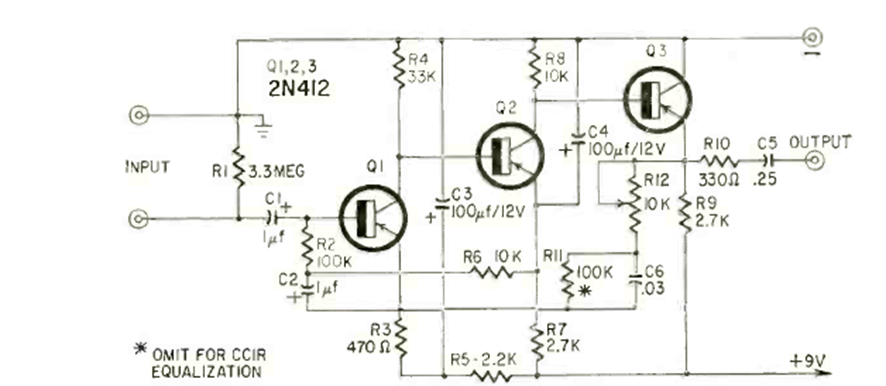

This circuit was found in Radio Electronics magazine from October 1964. The circuit uses two transistors of the time that require a supply voltage of 9 V. Consumption is 2.5 mA.
