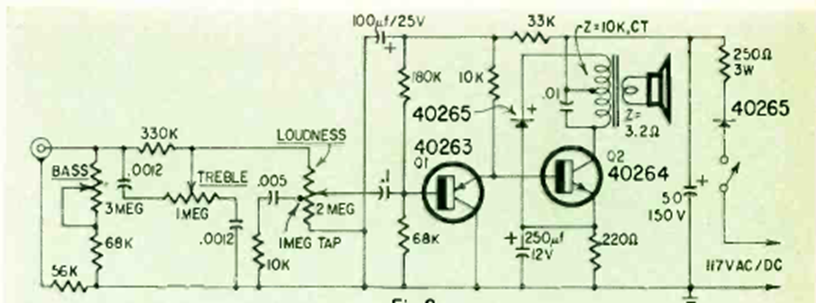

What's different about this transistorized circuit is the fact that it doesn't use a voltage step-down transformer and is powered directly by the power grid. We found it in Radio Electronics magazine from June 1965. It was suggested as part of a radio.
