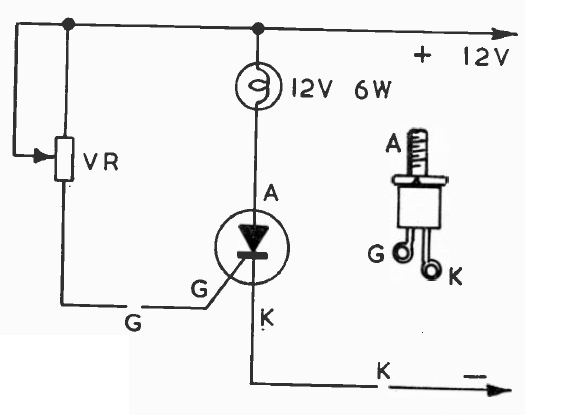

VR can be from 50 to 220k it is recommended to connect a 100-ohm resistor in series. The lamp may be of lower power. General purpose SCRs can be tested.
Simple SCR test (CB22088E)
- Details
- Written by: Newton C. Braga
VR can be from 50 to 220k it is recommended to connect a 100-ohm resistor in series. The lamp may be of lower power. General purpose SCRs can be tested.
