600-ohm amplifier (CB23536E)

Details
Written by: Newton C. Braga

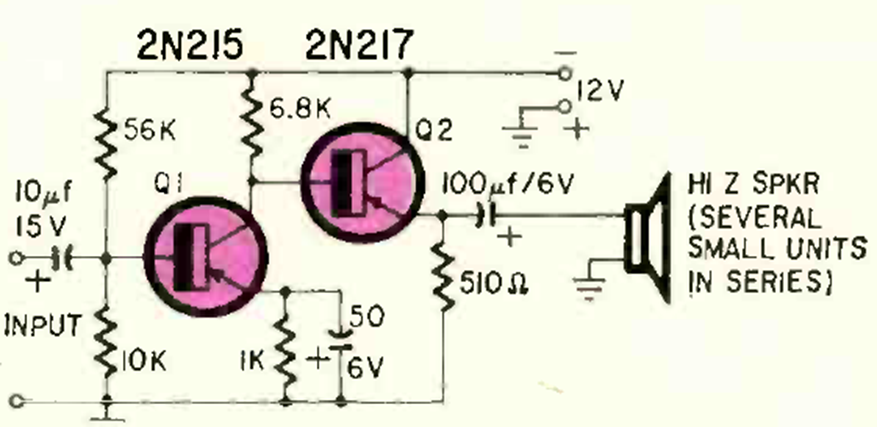

This 600-ohm output impedance circuit was found in a Radio Electronics from October 1963. The circuit uses PNP transistors of the time and is powered with a voltage of 12 V.




| Clique na imagem para ampliar |
