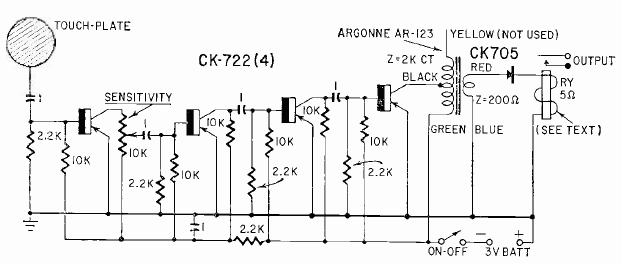

We found this circuit in Radio Electronics magazine from June 1960. The four-transistor circuit is sensitive and powered by batteries. The relay is in accordance with the battery.
Touch Relay CK722 (CB23676E)
- Details
- Written by: Newton C. Braga
We found this circuit in Radio Electronics magazine from June 1960. The four-transistor circuit is sensitive and powered by batteries. The relay is in accordance with the battery.
