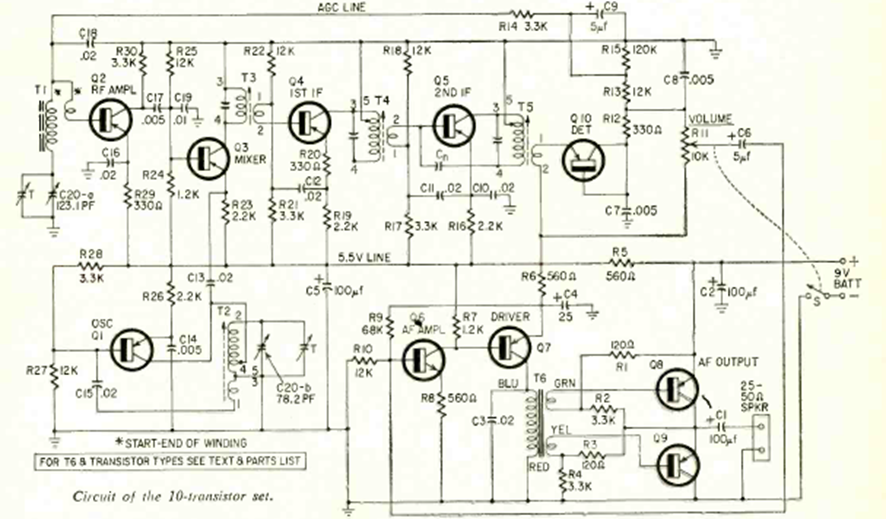

This 10-transistor radio was found in Radio Electronics magazine from December 1964. The components are period types such as transistors and coils and transformers, which are difficult to obtain today. The radio was powered by a 9 V. Battery or supply.
