We found this circuit in a Radio Electronics from February 1966. The transistor is from the time and so are the transformers. The circuit is battery powered. Observe the impedances.
| Clique na imagem para ampliar |

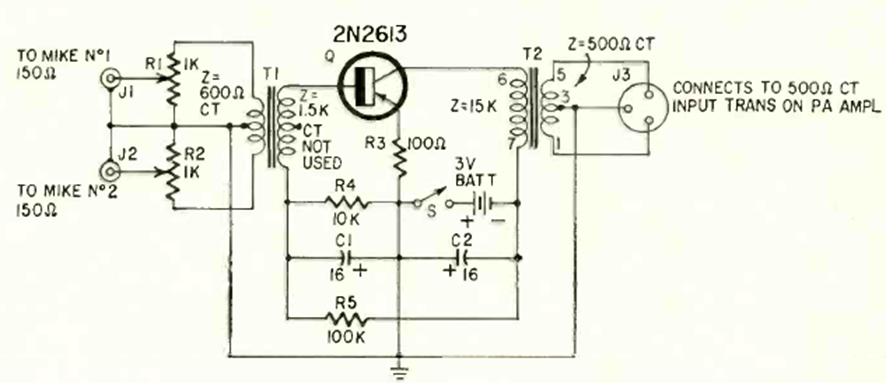

Microphone preamplifier (CB23705E)
- Details
- Written by: Newton C. Braga
