Microphone Preamplifier (CB23956E)

Details
Written by: Newton C. Braga

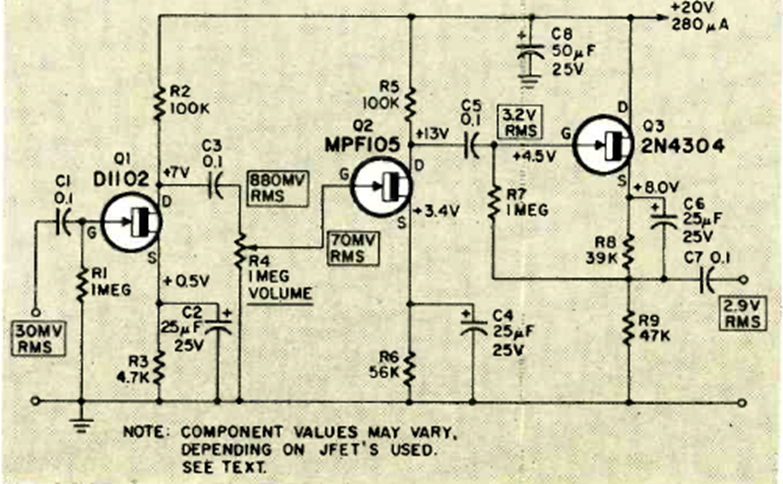

We found this circuit with JFETs in a Radio Electronics magazine from June 1969. The circuit has its assembly described in a complete article. Equivalent transistors can be used.
