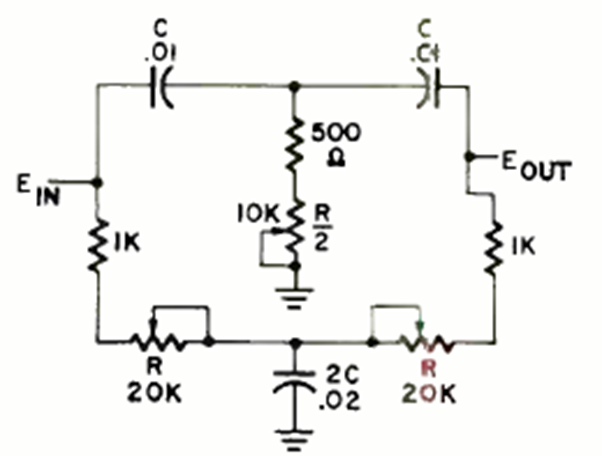

This filter was found in the October 1969 issue of Radio Electronics magazine. The frequency depends on the capacitors and the adjustments of the three potentiometers, with the central value being around 1 kHz.
Notch Filter (CB23978E)
