Manual Clock 7400 (CB22411E)

Details
Written by: Newton C. Braga

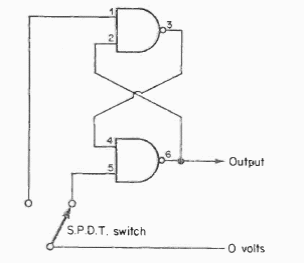

This circuit to produce clock pulses is manually driven. The circuit is TTL and must be powered by 5 V.
