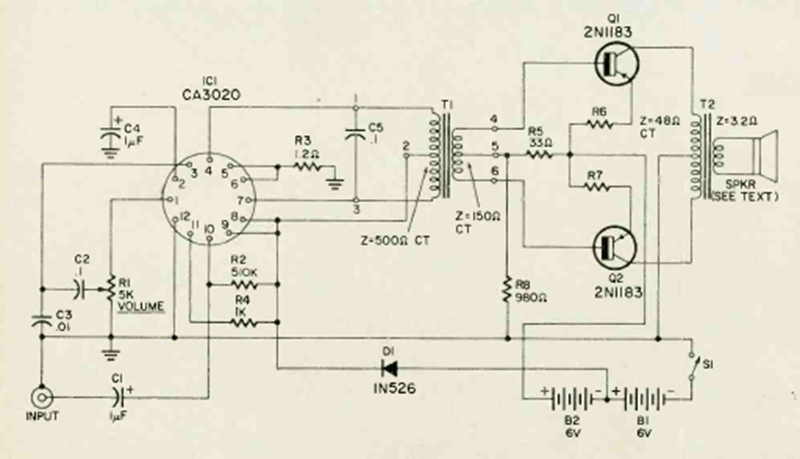

This circuit was found in Radio Electronics magazine from September 1968. The circuit has two power transistors and the excitation is carried out by a well-known integrated device at the time, the CA3020. The circuit provided a few watts of output and was powered by batteries.
| Clique na imagem para ampliar |
