Digital control with relays (CB23773E)

Details
Written by: Newton C. Braga

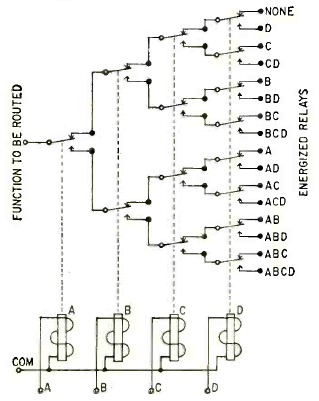

With the coded activation of the relays, it is possible to control which of the 16 outputs receives the input signal. The circuit is from a Radio Electronics from October 1961.
