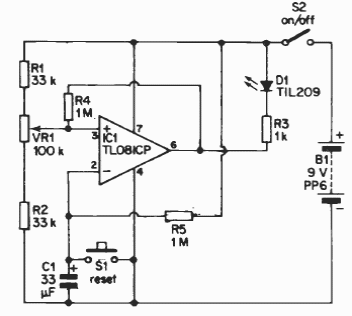

This circuit activates an LED, but it can be modified to activate a relay. The time is set in VR1, and the power supply can be made by other voltages, within the range allowed by the operational (op amp).
Timer from 4 to 40 seconds (CB22062E)
- Details
- Written by: Newton C. Braga
