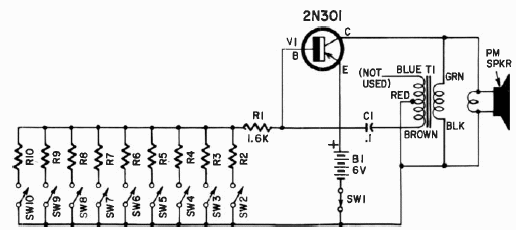

We found this circuit in a documentation from 1966. The transformer is output for transistors. Resistors from 1k to 100k have values determined by experimentation. We suggest using a 100k pot instead of the network.
Metronome (CB22501E)
- Details
- Written by: Newton C. Braga
