Ultrasonic receiver (CB22129E)

Details
Written by: Newton C. Braga



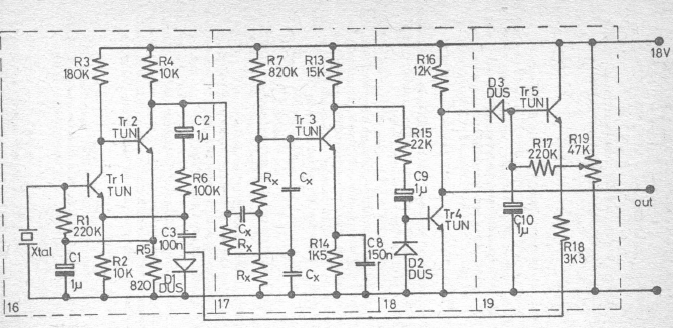

Found in an English documentation, this circuit serves as a receiver for modulated sources of ultrasound. The sensor is a ceramic capsule. Transistors are general purpose types.
