Flash trigger (CB23692E)

Details
Written by: Newton C. Braga



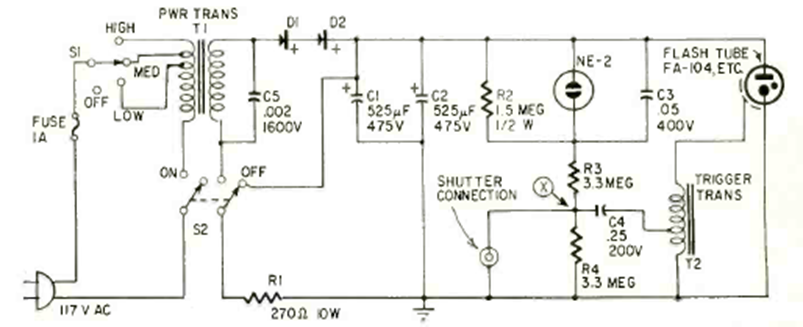

This is a very common circuit in the days of xenon flashes for cameras. This is from a Radio Electronics magazine from November 1965. It uses an SCR and has manual triggering.
