Remote Amplifier (CB23728E)

Details
Written by: Newton C. Braga

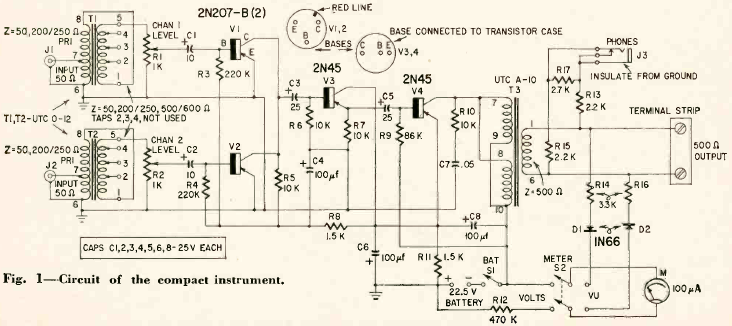

This two-microphone amplifier was found in a April 1961 Radio Electronics Magazine. The circuit is powered by battery and has a 600-ohm line output.
