Two-transistor assisted ignition (CB23558E)

Details
Written by: Newton C. Braga

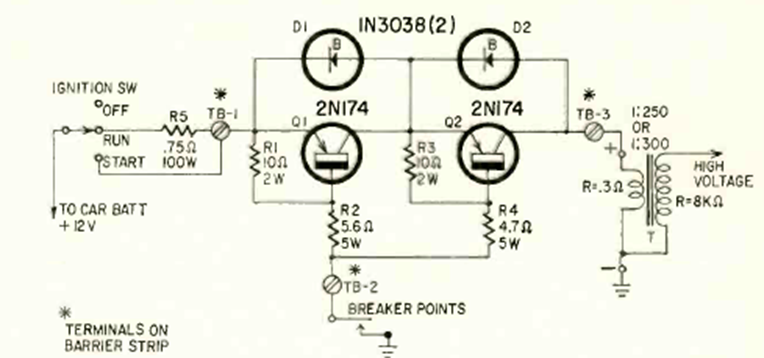

This circuit is from a Radio Electronics from April 1964. The circuit uses power transistors of the time, which must be mounted on a good heat radiator. Modern equivalents can be used.




| Clique na imagem para ampliar |
