Automatic Electronic Music Box (CB24893E)

Details
Written by: Newton C. Braga

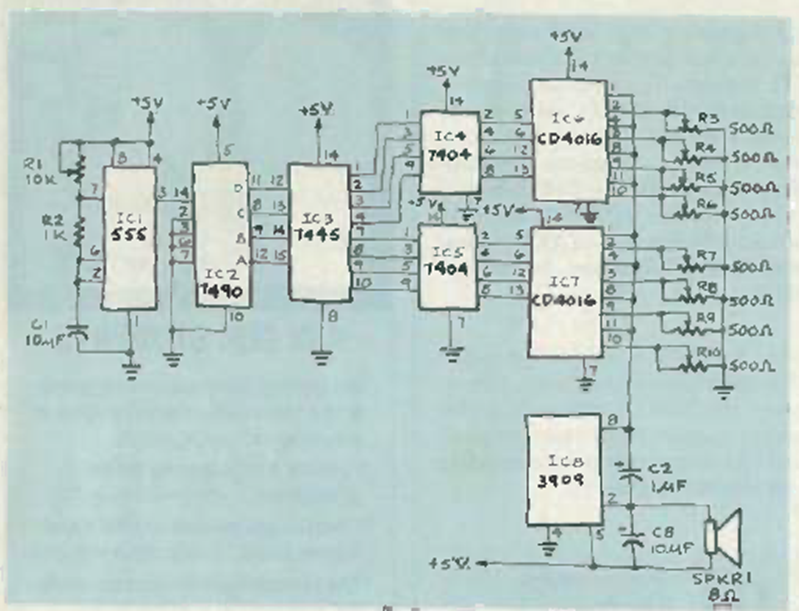

This simple electronic music box circuit was found in the April 1985 issue of Radio Electronics. The components are common, and the note adjustments are made with trimpots.
