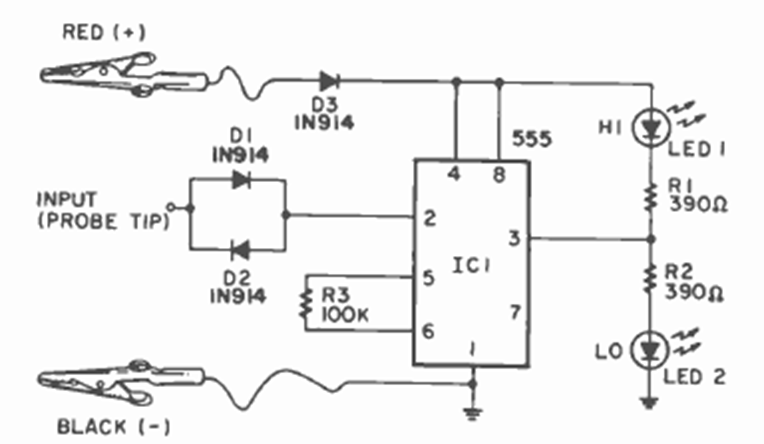

This simple logic probe circuit was found in the August 1980 issue of Radio Electronics magazine. The circuit works with both TTL and CMOS logic.
| Clique na imagem para ampliar |
Logic Probe (CB24647E)
- Details
- Written by: Newton C. Braga
This simple logic probe circuit was found in the August 1980 issue of Radio Electronics magazine. The circuit works with both TTL and CMOS logic.
