Video Game (CB24556E)

Details
Written by: Newton C. Braga

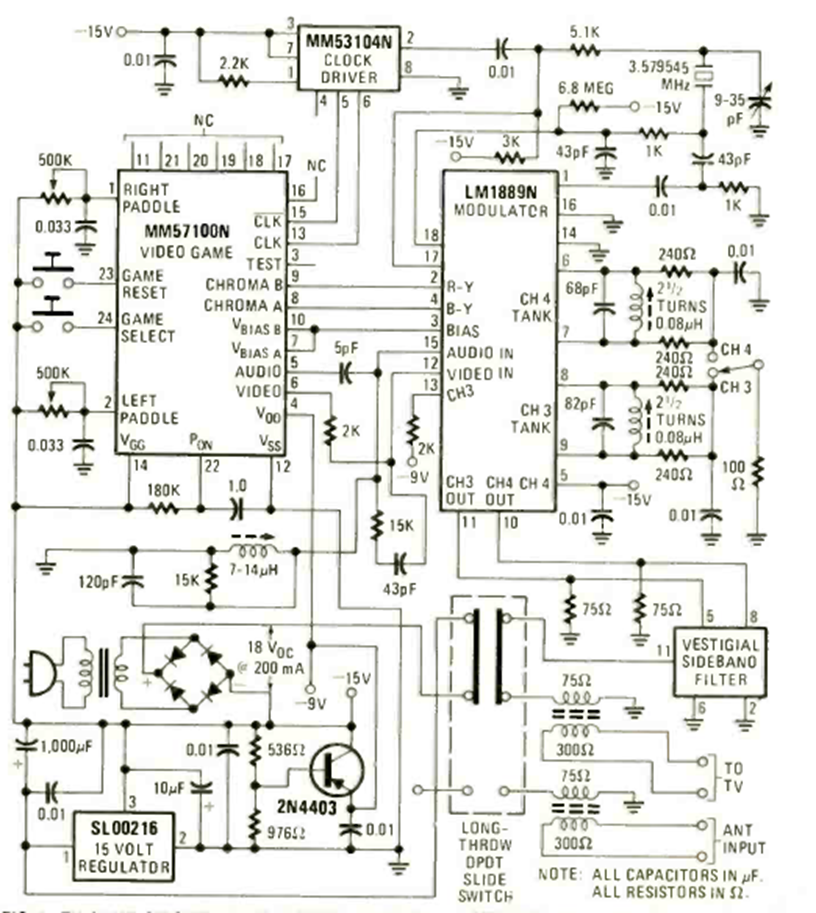

This complete video game circuit was found in the May 1978 issue of Radio Electronics magazine. The circuit includes the power supply and timing based on the MM5710N.




| Clique na imagem para ampliar |
