Delayed Switch (CB24047E)

Details
Written by: Newton C. Braga

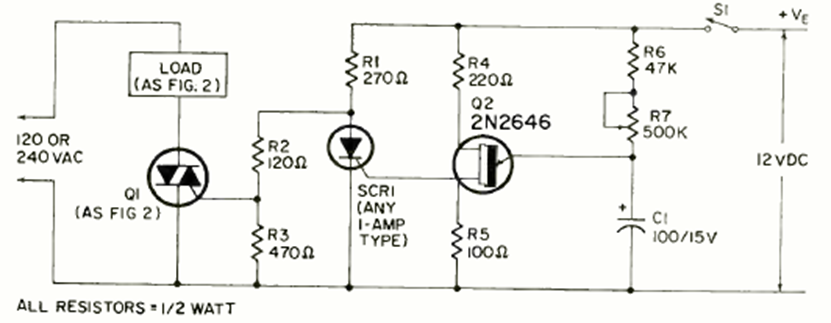

This triac circuit turns on a load after a time of 8 to 80 seconds adjusted by potentiometer R7. The circuit is from a Radio Electronics from June 1970.




| Clique na imagem para ampliar |
