Digital Clock (CB24262E)

Details
Written by: Newton C. Braga

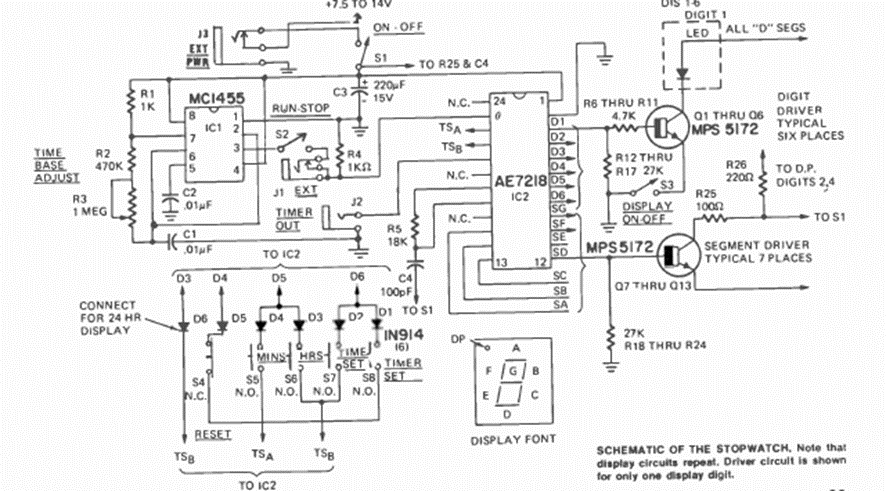

This is an integrated clock circuit from the time and was published in the November 173 Radio Electronics magazine. The circuit uses an AE7218 as a base for restorers.
