1971 RCA WV 510A VOM (CB24125E)

Details
Written by: Newton C. Braga

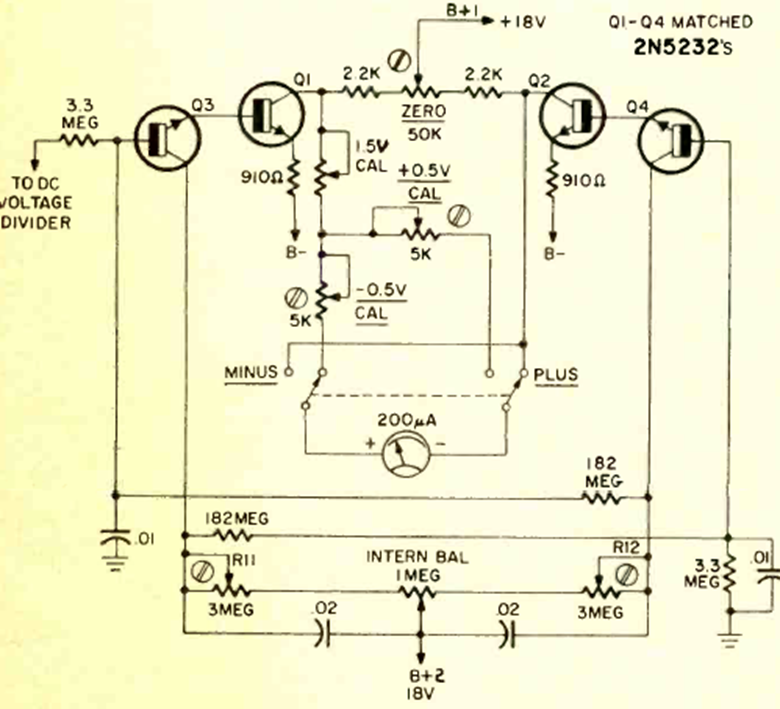

Found in the May 1971 Radio Electronics magazine, this is the circuit for a commercial high-impedance instrument. The circuit uses 4 transistors and is powered by 2 9 V batteries.




| Clique na imagem para ampliar |
