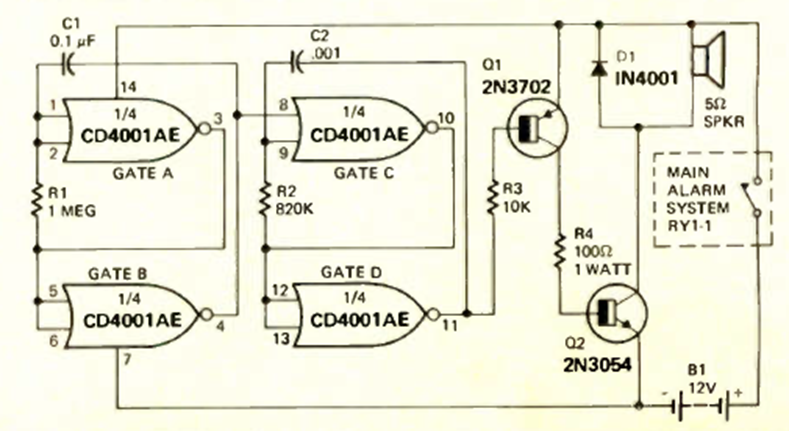

Alarm Buzzer (CB24392E)

This circuit was found in July 1975 Radio Electronics magazine. Power depends on the trigger transistor and the effects of capacitors C1 and C2.

| Clique na imagem para ampliar |

DC servo amplifier (CB20793E)
This circuit is from a publication from the 70s. The operational amplifier is from the period. Modern...
555 Oscillator with Variable Duty Cycle (CB25511E)
We found this circuit in the October 1992 issue of Radio Electronics magazine. The duty cycle can...
Pulse Counter (CB24087E)
This circuit digitally counts input pulses. The circuit from a November 1970 Radio Electronics uses...
