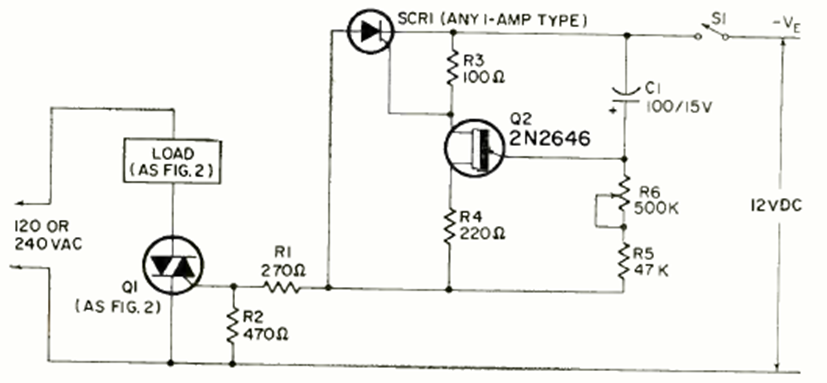

This circuit turns off a load after an interval of 8 to 80 seconds adjusted on the potentiometer. The circuit is from a Radio Electronics June 1970. The time depends on C1 and can be changed.
| Clique na imagem para ampliar |
Triac Timer (CB24046E)
- Details
- Written by: Newton C. Braga
