1976 6-Digit Clock (CB24419E)

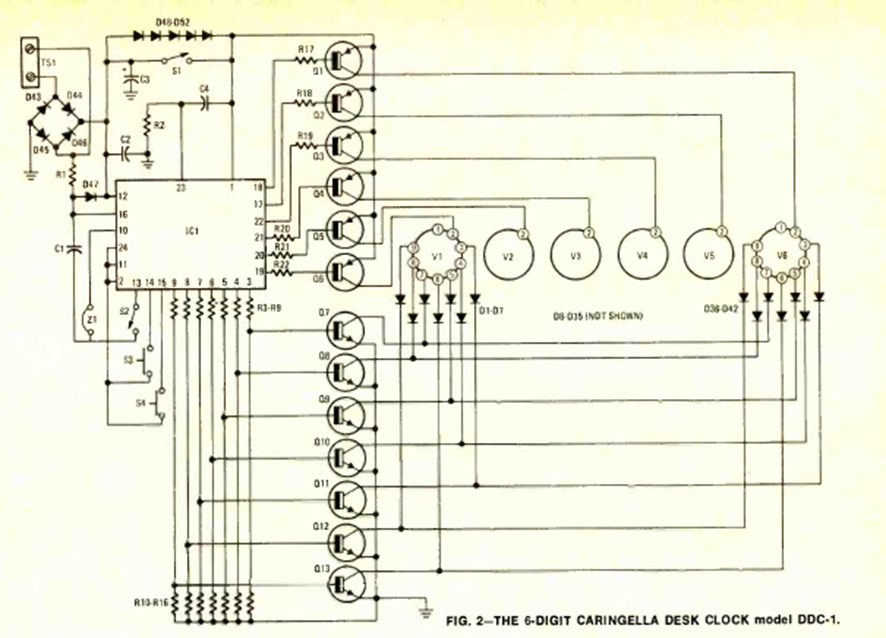

This commercial 6-digit clock circuit was found in August 1976 Radio Electronics magazine. Note the supply voltages and the use of a period module.
