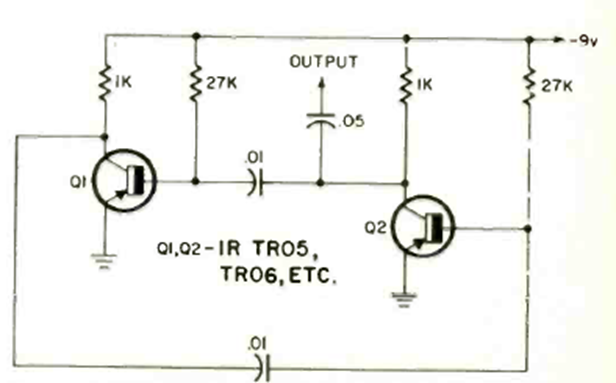

The simple two-transistor signal injector shown in the figure was found in the May 1971 issue of Radio Electronics magazine. It consists of a multivibrator whose frequency is basically given by C1.
Signal Injector (CB24136E)
- Details
- Written by: Newton C. Braga
