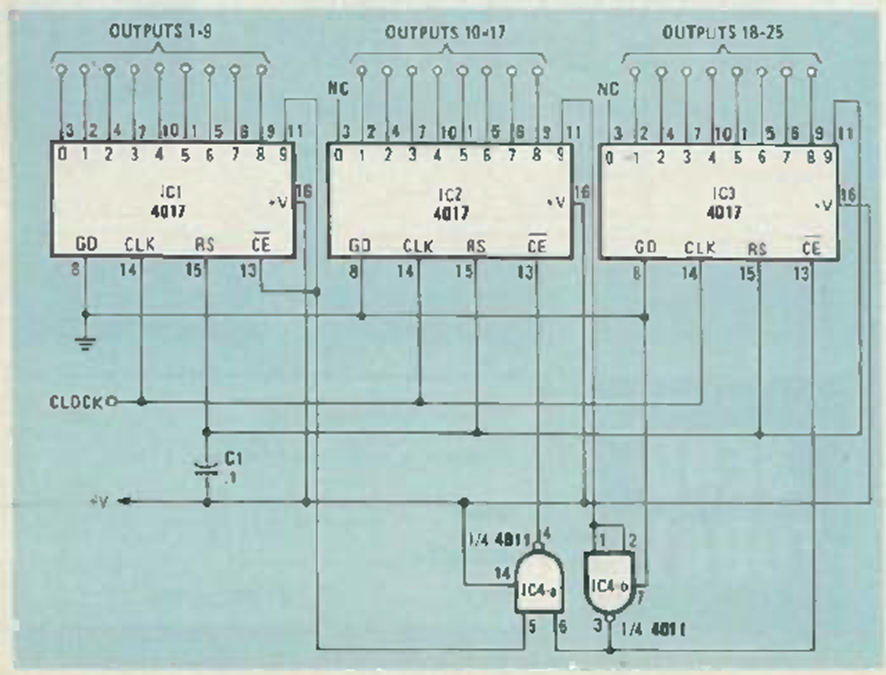

This circuit is from the Radio Electronics magazine of May 1984. With it, it is possible to increase the number of outputs of the 4017 IC. The circuit has 25 outputs. The power supply depends on the application, ranging from 3 to 15 V.
