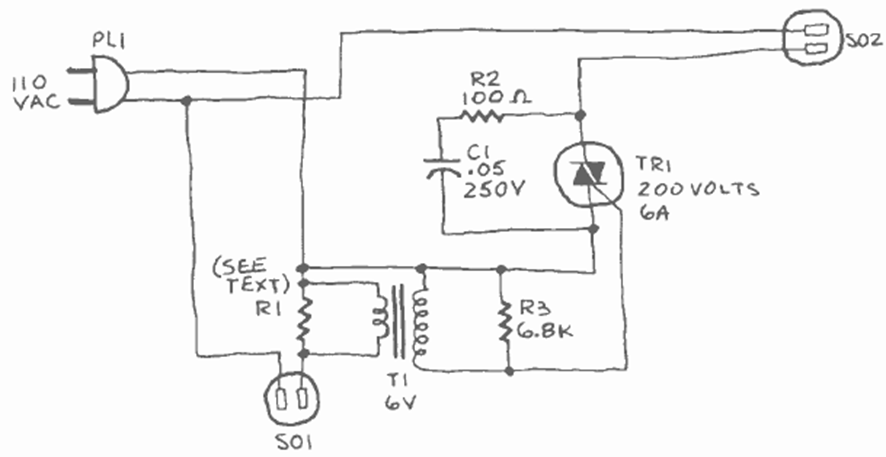

The idea of this circuit is that when the device in SO1 is turned on, the device connected to SO2 automatically receives power. The circuit is from Radio Electronics from January 1985.
| Clique na imagem para ampliar |
Socket control (CB24880E)
- Details
- Written by: Newton C. Braga
