Clock Radio in Home Appliance Control (CB24765E)

Details: Written by: Newton C. Braga

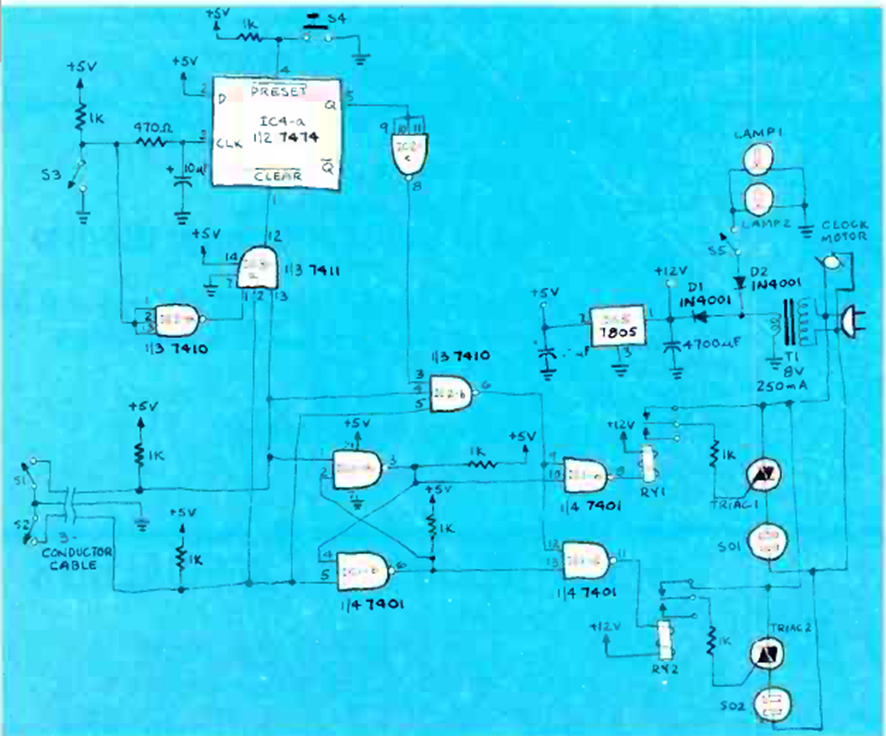

This circuit from Radio Electronics from February 1983 shows how to use a clock radio in home appliance control. The circuit uses Triacs and TTL logic.
