High Current Timing Circuit (CB24442E)

Details
Written by: Newton C. Braga

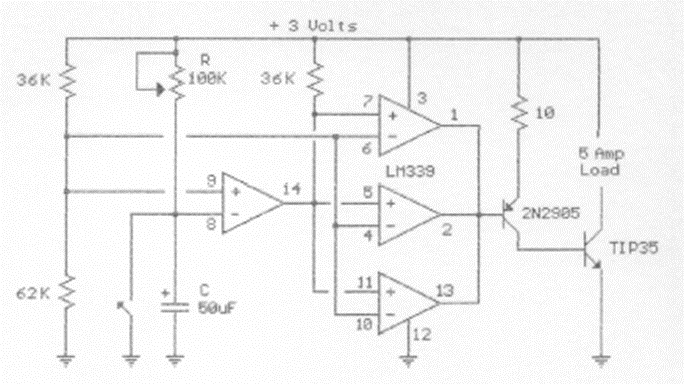

This circuit with a voltage comparator is delayed by the capacitor. The circuit drives a power transistor that must be equipped with a good heat sink.
