CEM3330 Effects Circuit (CB24745E)

Details
Written by: Newton C. Braga

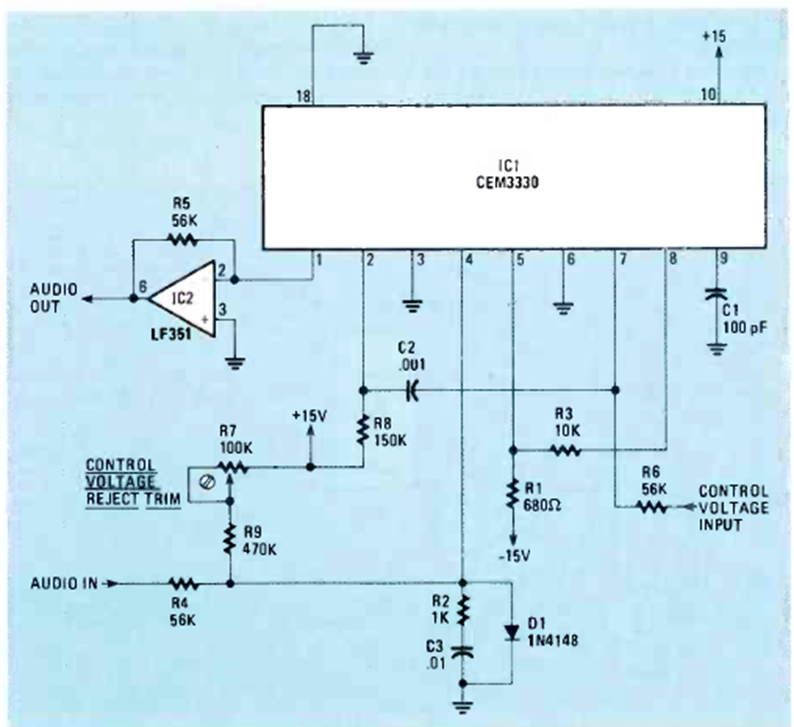

This circuit for effects on music synthesizers was found in the May 1983 issue of Radio Electronics magazine. The circuit requires a 15 V power supply.




| Clique na imagem para ampliar |
