Alarm Siren 4001 (CB24363E)

Details
Written by: Newton C. Braga

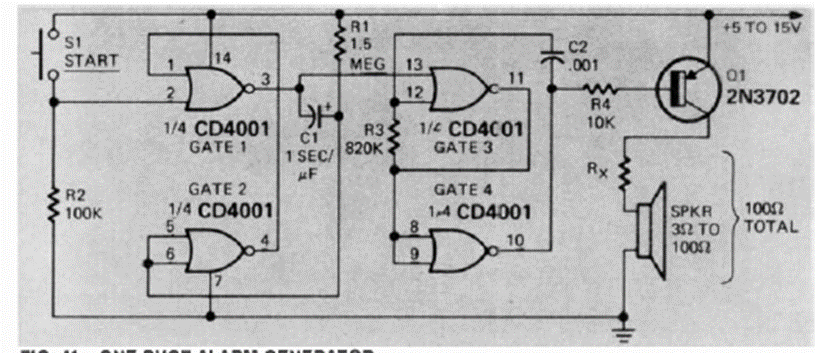

This two-tone alarm siren was found in the January 1975 issue of Radio Electronics magazine. The power transistor can be changed and with it, Rx has values ​​from 10 to 47-ohm.
