Tail Light Monitor (CB24157E)

Details
Written by: Newton C. Braga

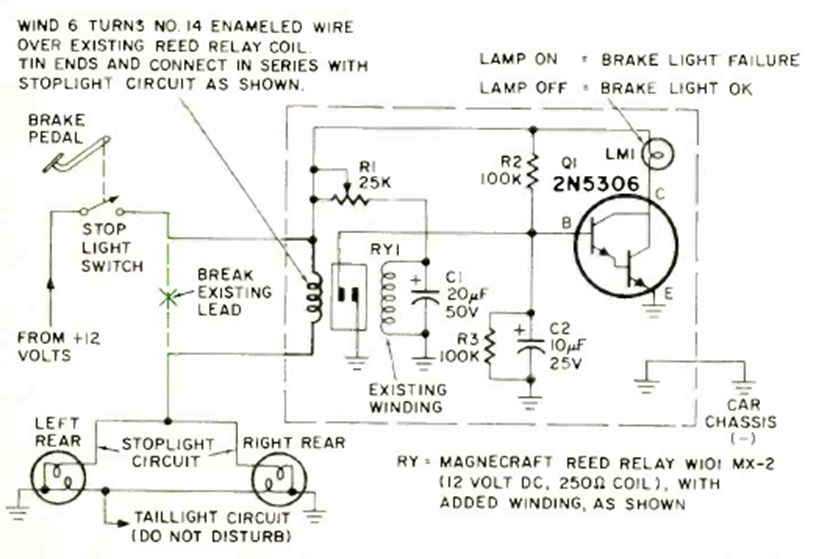

This old automotive circuit was found in an August 1971 Radio Electronics magazine article. The transistor is a Darlington transistor rated for the wattage of the bulb.
