Digital Clock Alarm (CB24421E)

Details
Written by: Newton C. Braga

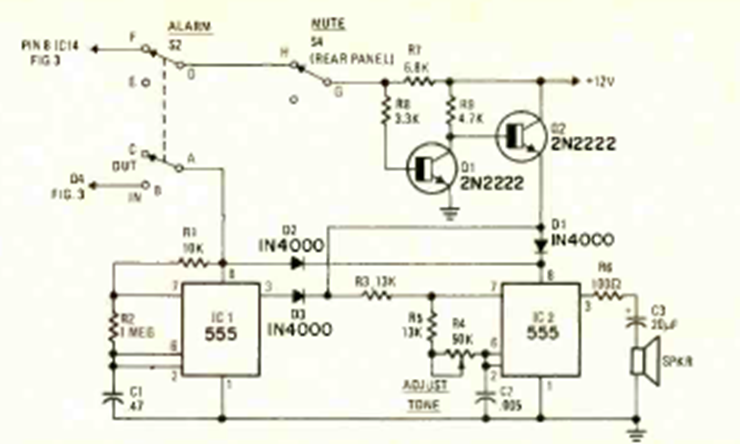

This 555-based circuit was found in the August 1976 issue of Radio Electronics magazine. The tone frequencies are provided by the capacitors connected to the 555 IC.
