Approach Alarm (CB24079E)

Details
Written by: Newton C. Braga

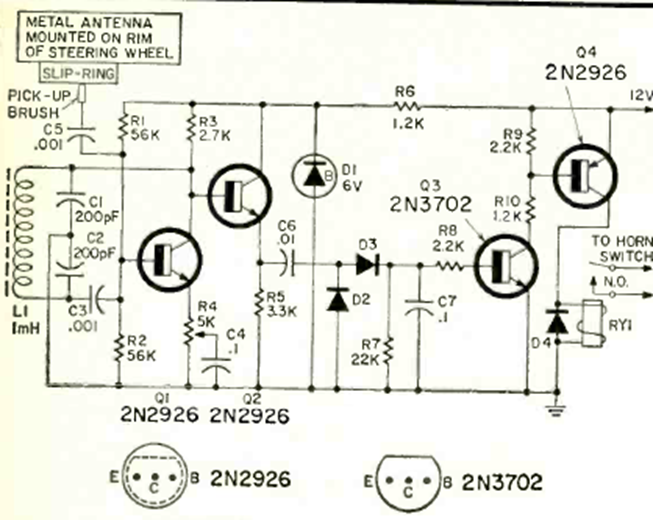

This approach alarm circuit was found in the September 1970 Radio Electronics issue. The 1 mH coil is wound on a ferrite rod. The relay is 12 V sensitive.
