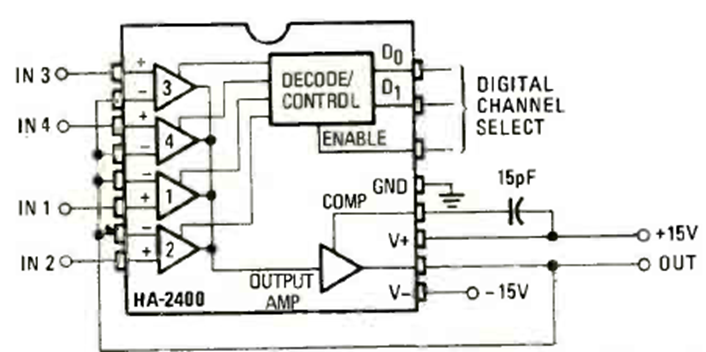

Multiplexer with HA2400 (CB24620E)

Details
Written by: Newton C. Braga



This circuit featuring a new quadruple operational amplifier was found in the March 1980 issue of Radio Electronics magazine. The circuit is to be powered by a symmetrical 15 V source.
