Serial IN parallel out (CB24931E)

Details
Written by: Newton C. Braga

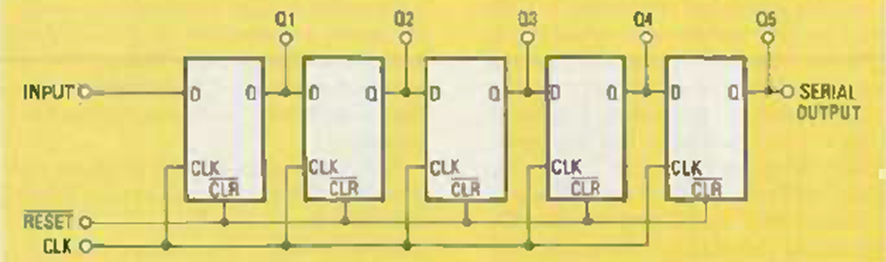

This circuit shows how to use flip-flops in a SIPO circuit with serial input and parallel output.
