VU meter with LM3914 (CB24653E)

Details
Written by: Newton C. Braga

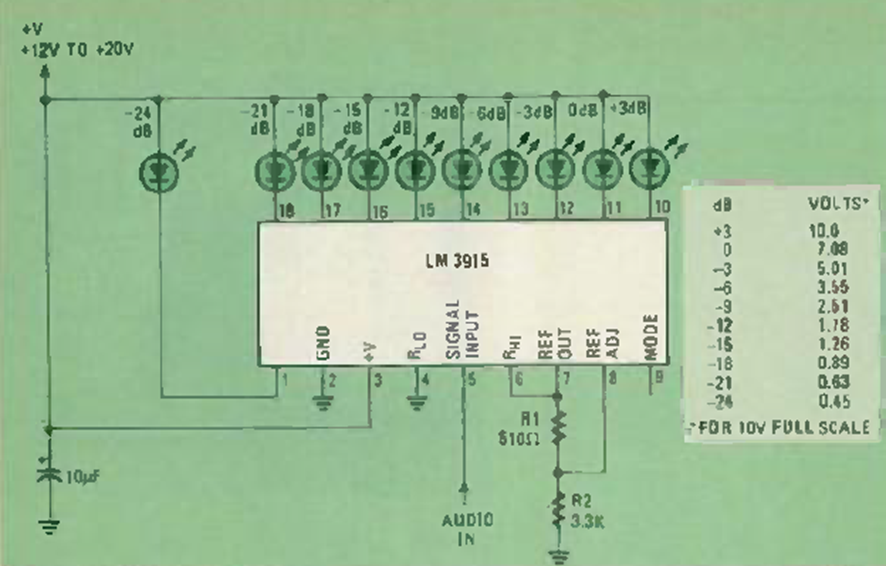

This audio level indicator was found in October 1980 Radio Electronics magazine. See the table with the dB values ​​of the indicated signals.




| Clique na imagem para ampliar |
