Automatic shutdown circuit (CB24444E)

Details
Written by: Newton C. Braga

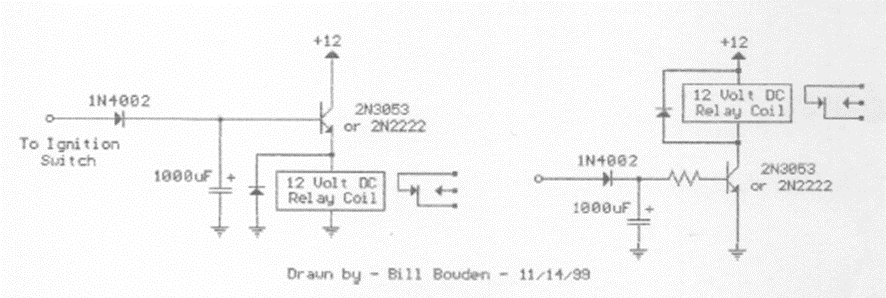

We found this circuit in documentation from the 90s. The circuit uses components that are still common today, turning off a load after the programmed time. The time is given by the capacitor.
