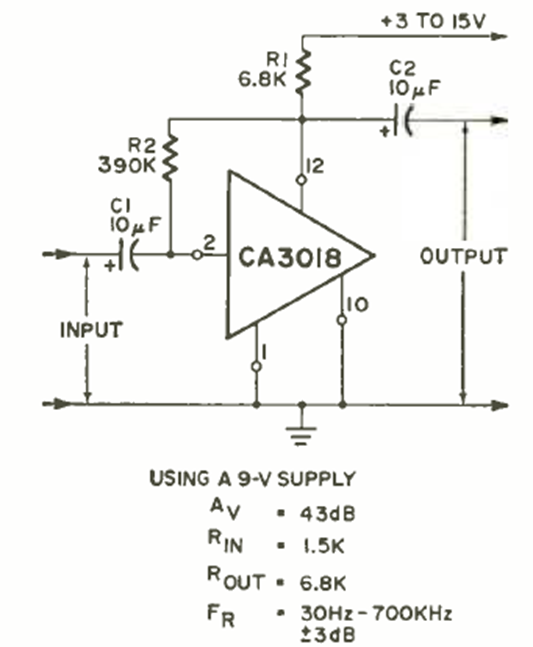

This common emitter amplifier with 43 dB gain was found in the August 1970 issue of Radio Electronics magazine. The circuit characteristics are listed next to the diagram.
CA3018 Amplifier (CB24062E)
- Details
- Written by: Newton C. Braga
This common emitter amplifier with 43 dB gain was found in the August 1970 issue of Radio Electronics magazine. The circuit characteristics are listed next to the diagram.
