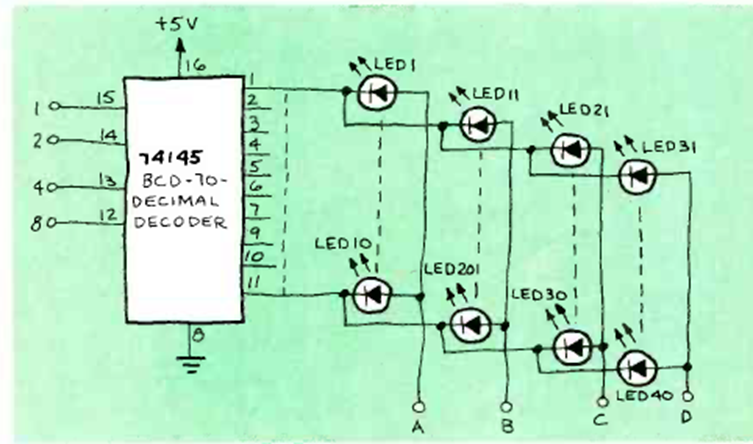

This TTL circuit is from a Radio Electronics magazine from November 1983. The circuit drives a set of LEDs. The integrated circuit used is a BCD to decimal decoder.
| Clique na imagem para ampliar |
Loto (CB24768E)
- Details
- Written by: Newton C. Braga
