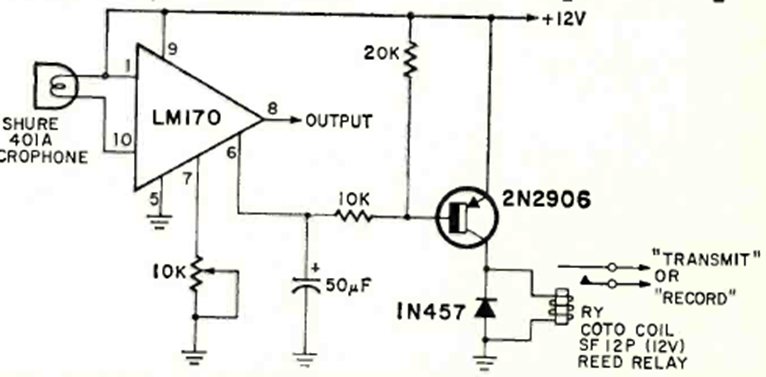

Using the LM170 integrated circuit, this circuit was found in the May 1970 Radio Electronics magazine. The transistor is general-purpose, and the potentiometer adjusts the gain.
| Clique na imagem para ampliar |
Vox for transmitter (CB24038E)
- Details
- Written by: Newton C. Braga
