Logic Indicator (CB24583E)

Details
Written by: Newton C. Braga

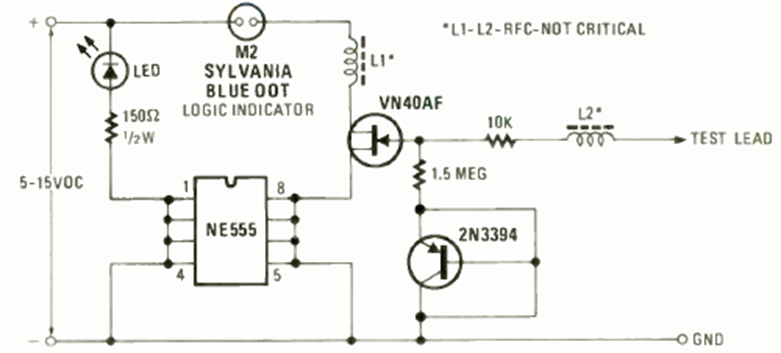

This indicator or logic probe was found in the April 1979 Radio Electronics magazine. The integrated circuit is the 555 and the FET can be any general-purpose type.
