Educational Counter (CB24770E)

Details
Written by: Newton C. Braga

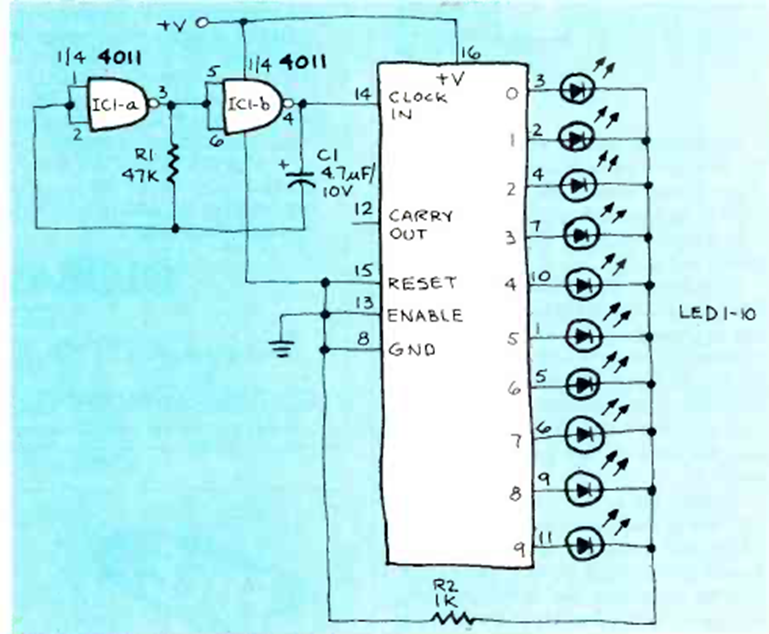

This counter was found in the November 19983 issue of Radio Electronics magazine. The power supply can be between 3 and 12 V typically. The counting speed depends on C1.
