Relative Humidity Meter (CB24728E)

Details
Written by: Newton C. Braga

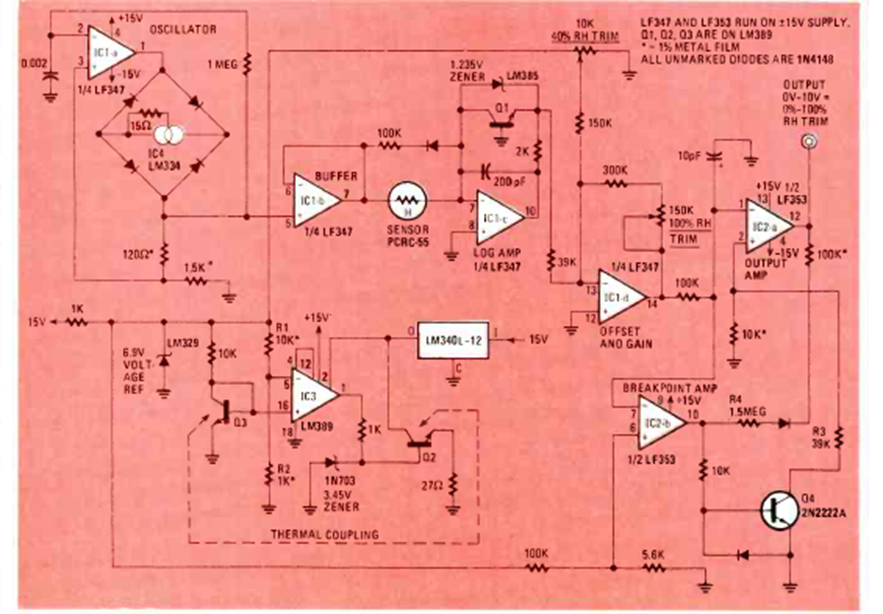

This circuit was found in the December 1982 Radio Electronics magazine. The components are of types that are still commonly found. The power supply is not included.




| Clique na imagem para ampliar |
