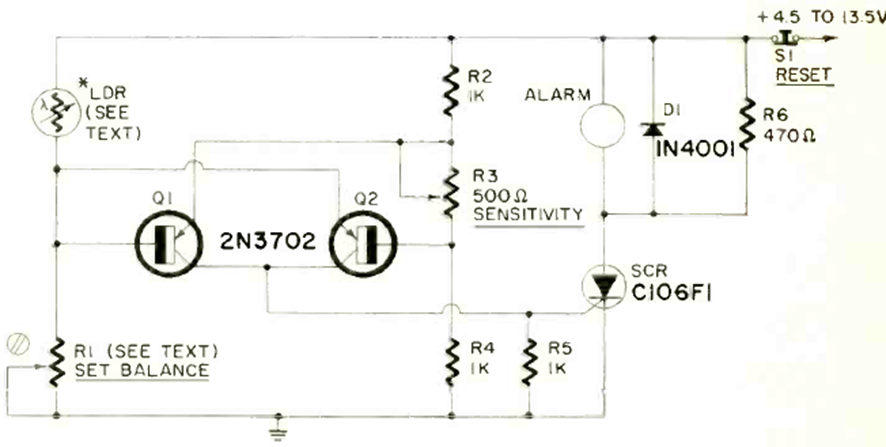

Sensitive Power Outage Alarm (CB24153E)

Details
Written by: Newton C. Braga



Found in an article in the August 1971 Radio Electronics magazine, this circuit supports 106 series SCRs and general-purpose transistors such as the BC.
