Musical Dialer (CB24887E)

Details
Written by: Newton C. Braga

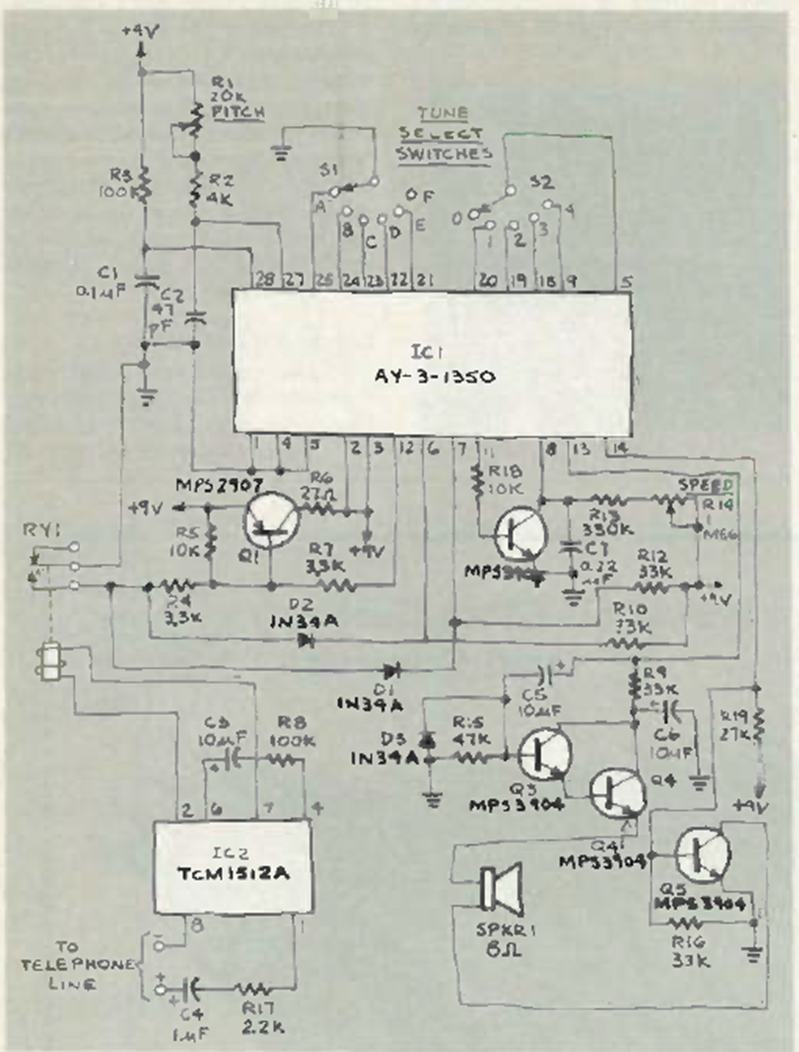

This circuit was found in the February 1985 issue of Radio Electronics magazine. It is based on an AY-3-1350 melody generator that was common at the time. It is suitable for analog lines only.
